Für Scheibeneggen

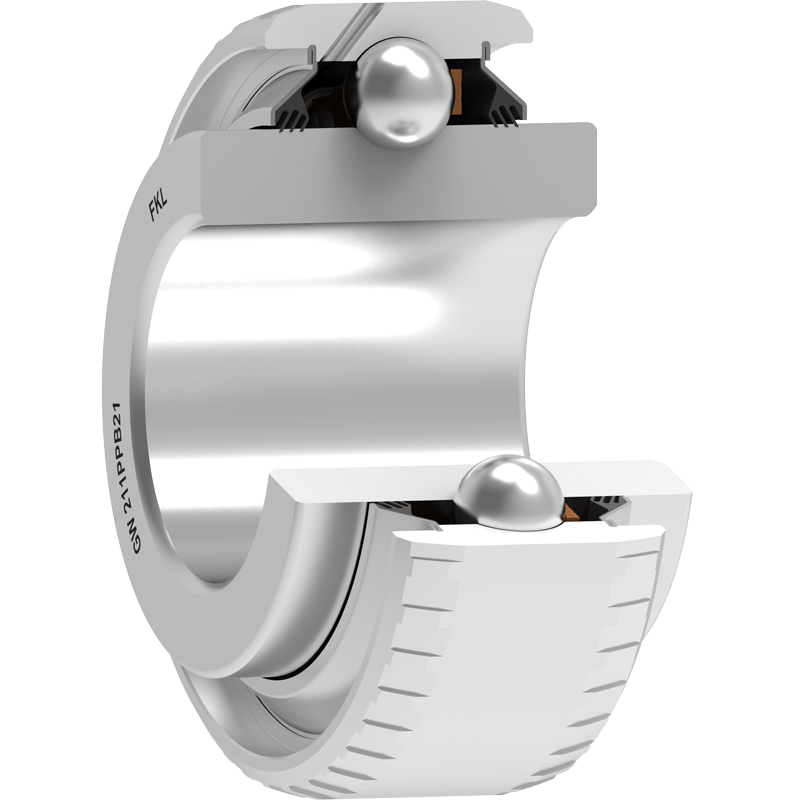

GW 211PPB21
Round Bore Series With Cylindrical Outer Ring – Relubricable Type
Applikation:

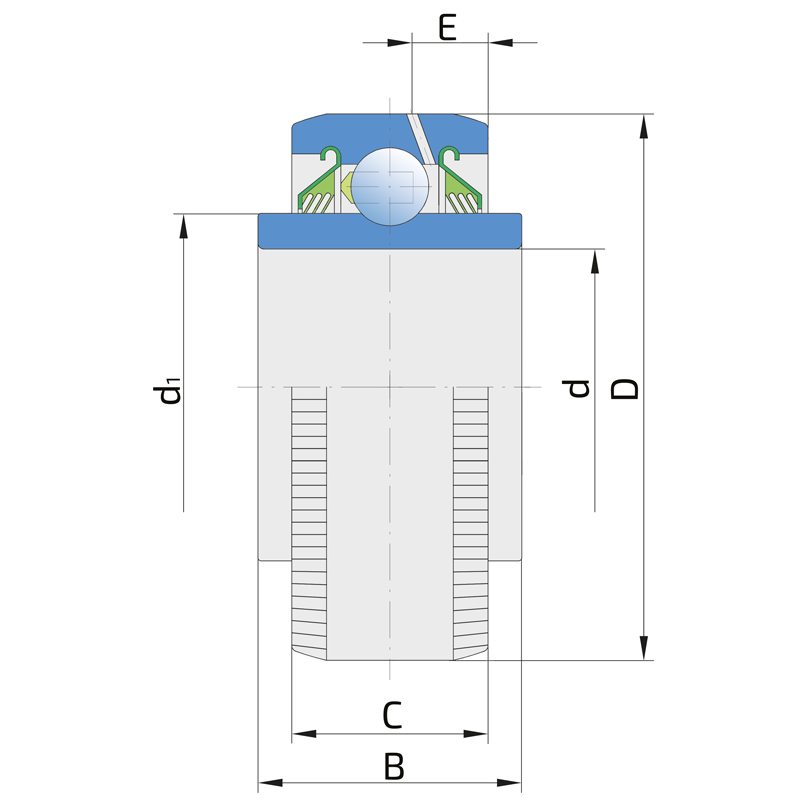

| d | Bore diameter | 1.78 | inch |
| d | Bohrungsdurchmesser | 45.21 | mm |
| D | Outside diameter | 3.979 | inch |
| D | Außendurmesser | 101.067 | mm |
| B | Width inner ring | 2.125 | inch |
| B | Breite Innenring | 53.975 | mm |
| C | Width outer ring | 1.438 | inch |
| C | Breite Außenring | 36.525 | mm |
| d1 | Outer diameter inner ring | 2.72 | inch |
| d1 | Außendurchmesser Innenring | 69.1 | mm |
| E | Distance from raceway centre to the hole for lubrication | 1 | inch |
| E | Abstand Laufbahnmitte bis Schmierbohrung | 15.6 | mm |
| Cdyn | Dynamic load rating | 9700 | lbs |
| Cdyn | Dynamische Tragzahl | 43.5 | kN |
| Co | Static load rating | 6500 | lbs |
| Co | Statische Tragzahl | 29 | kN |
| kg | Mass | 3.29 | lbs |
| kg | Gewicht | 1.49 | kg |
