Für Scheibeneggen

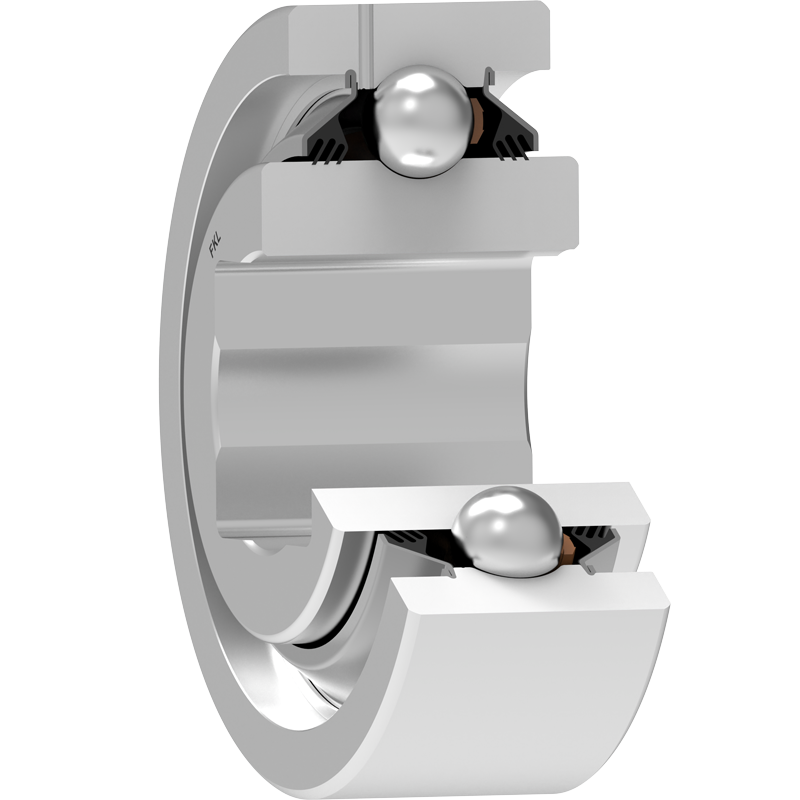

GW 208PP17
Square Bore Series With Cylindrical Outer Ring – Relubricable Type
Applikation:
| D | Outside diameter | 3.3756 | inch |
| D | Außendurmesser | 85.74 | mm |
| B | Width inner ring | 1.437 | inch |
| B | Breite Innenring | 36.5 | mm |
| C | Width outer ring | 1.188 | inch |
| C | Breite Außenring | 30.18 | mm |
| d1 | Outer diameter inner ring | 2.05 | inch |
| d1 | Außendurchmesser Innenring | 52 | mm |
| E | Distance from raceway centre to the hole for lubrication | 0.256 | inch |
| E | Abstand Laufbahnmitte bis Schmierbohrung | 6.5 | mm |
| a | Shaft size | 1 1/8 | inch |
| a | Wellendurchmesser | 28.6 | mm |
| Cdyn | Dynamic load rating | 7300 | lbs |
| Cdyn | Dynamische Tragzahl | 32.5 | kN |
| Co | Static load rating | 4400 | lbs |
| Co | Statische Tragzahl | 19.8 | kN |
| kg | Mass | 2.04 | lbs |
| kg | Gewicht | 0.925 | kg |
